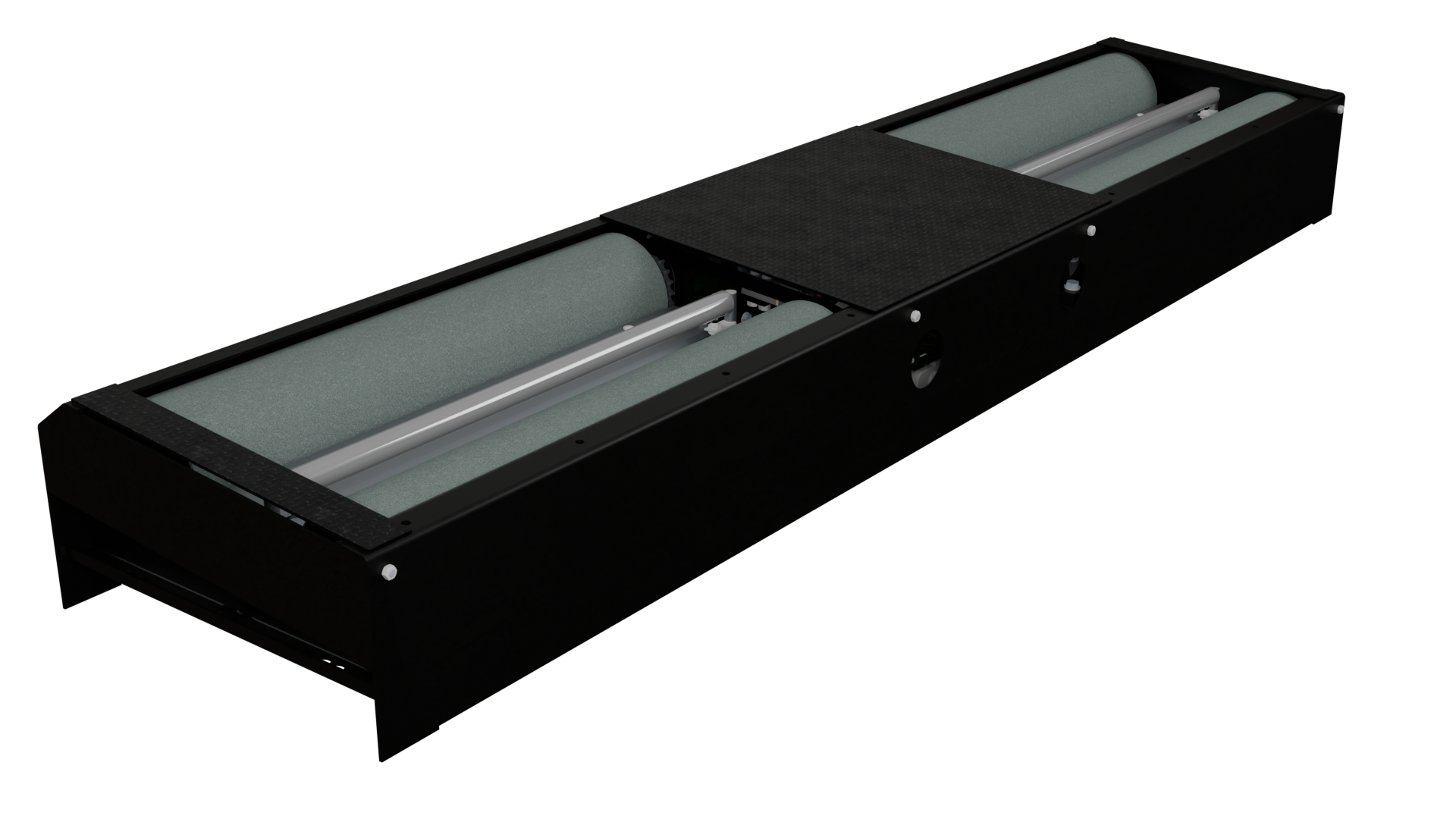

Brake tester – standard monobloc zinc plated chassis
This brake tester complies with the main international standards. This bench has a high axle load and powerful motors to minimise wear
It has a motor with an electro-magnetic brake to make it easier to remove the vehicle once the axle check has been completed
Options / Accessories
This brake tester complies with the main international standards. This bench has a high axle load and powerful motors to minimise wear
It has a motor with an electro-magnetic brake to make it easier to remove the vehicle once the axle check has been completed
Size (in mm) :
Parcel Nr.1 : 740 x 2420 x 630 mm
Weight (en kg):
Parcel Nr.1 : 522 kg
| TECHNICAL DATA | 43300-Z |
|---|---|
| Finishing | zinc plated chassis |
| Dimension | 2 320 x 650 x 285/335 mm |
| Weight | 420 kg |
| Minimum / Maximum clearance | 800 mm / 2 270 mm |
| Axle load capacity | 4 000 kg kg |
| Roller diameter | >200 mm |
| Maximum braking force | 2 x 750 daN à 5,5 km/h |
| Motor power | 2 x 4,7 kW |
| Roller coating | Epoxy / Silica |
| Adhesion coefficient | sec > 0,8 / humide > 0,6 |
| Raised rear rollers | +35 mm |
“
