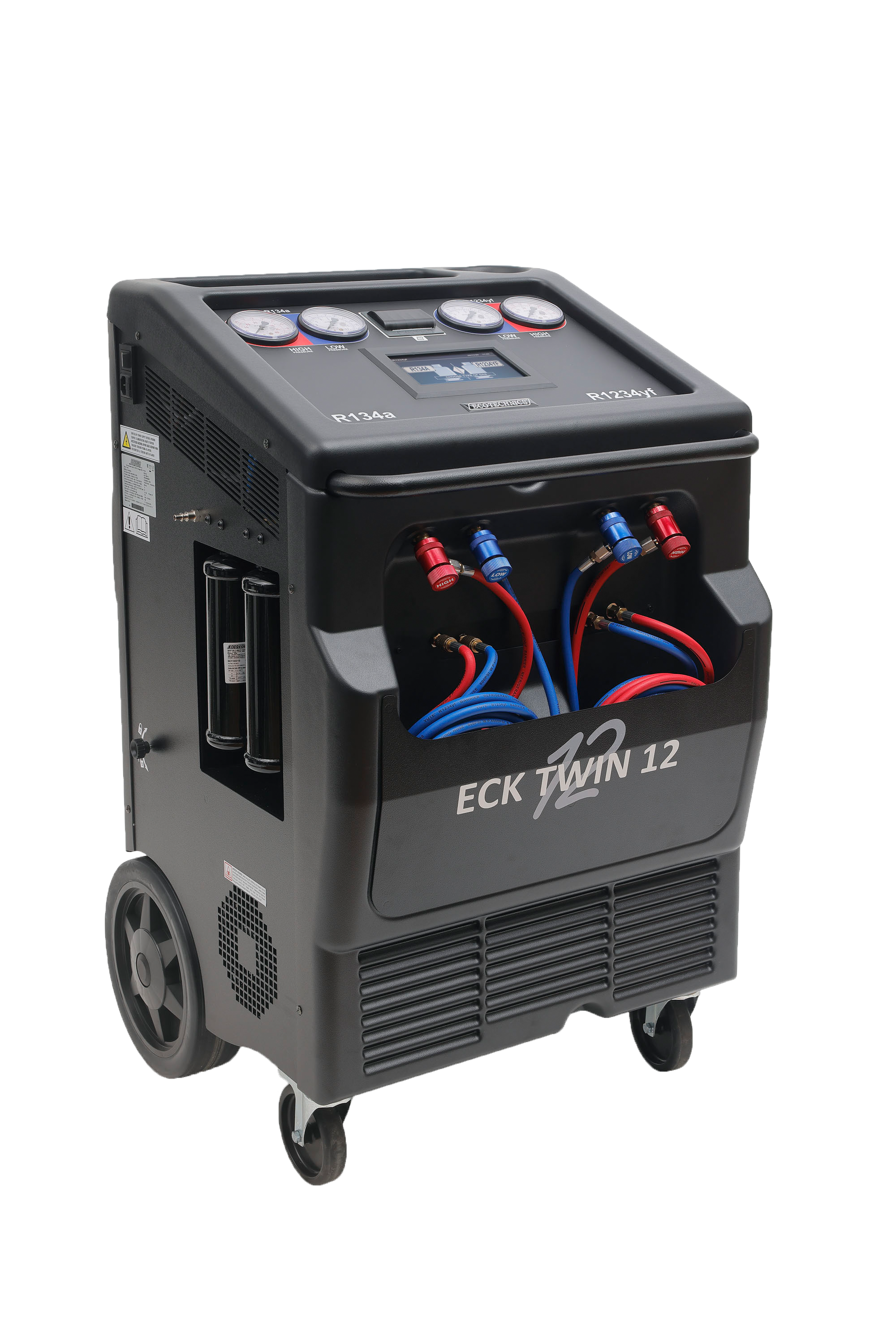

Refill station – The complete station for R134a and HFO1234yf
Super automatic station to recover, recycle and recharge independently R134a and R1234yf refrigerants. The ECKTWIN-PRO allows you to carry out the operations related to the air conditioning system of the entire current and future vehicle fleet at a lower cost (2 stations in 1) and its compact design allows you to preserve workshop space.
Unique and practical, you control the station thanks to its new touch screen, which increases user comfort. Easy and intuitive to use, you can access all functions naturally. After the selection of the vehicle, it manages in a completely automatic way. The opening and closing of the high and low pressure valves are managed automatically in order to avoid wrong manipulations.
Options / Accessories
Super automatic station to recover, recycle and recharge independently R134a and R1234yf refrigerants. The ECKTWIN-PRO allows you to carry out the operations related to the air conditioning system of the entire current and future vehicle fleet at a lower cost (2 stations in 1) and its compact design allows you to preserve workshop space.
Unique and practical, you control the station thanks to its new touch screen, which increases user comfort. Easy and intuitive to use, you can access all functions naturally. After the selection of the vehicle, it manages in a completely automatic way. The opening and closing of the high and low pressure valves are managed automatically in order to avoid wrong manipulations.
Size (in mm) :
Parcel nr.1 : 760 x 700 x 1250 mm
Weight (en kg):
Parcel Nr.1 : 132 kg
| TECHNICAL DATA | ECKTWIN-PRO |
|---|---|
| Refrigerant management (archiving) | Yes |
| Operator code | Yes |
| Leakage control | Yes |
| Software for automatic washing | Yes |
| Visual alarm | No |
| Automatic internal bottle refilling | Yes |
| Patented internal distribution unit | Yes |
| Kit Hybride | Yes |
| USB Port | Yes |
| Wi-Fi connectivity | No |
| Automatic purge | No |
| SAE J2788 and SAE J2843 compliance | Yes |
| Integrated database for cars, vans and trucks | Yes |
| Printer | Yes |
| Balance resolution | 10 g |
| Resolution oil balance | 5 g |
| Operating temperature range | 11/49°C |
| Vacuum pump (0.1 mbar) | 100L/min |
| Hermetic compressor | 2x 1/3 HP |
| Recovery speed | 300 g / min in liquid phase |
| Internal coolant bottle | 2 x 12 liters |
| BP/HP hoses | 2 x 3 meters |
| Pressure gauges | Classe 1 |
| Cylinder pressure gauge | Digital |
| Display | Tactile color 7″ |
