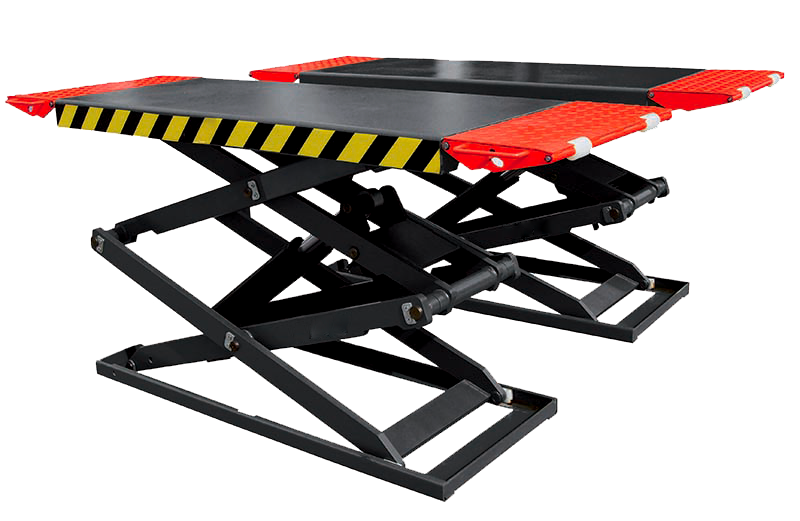

Double scissor low profile lift 3,0 T
This electro-hydraulic wheel free lift, features a lifting height of 1900 mm, providing optimal access to the vehicle underbody for repair or service works.
Options / Accessories
4x rubber lifting pads
This electro-hydraulic wheel free lift, features a lifting height of 1900 mm, providing optimal access to the vehicle underbody for repair or service works.
Size (in mm) :
Parcel Nr.1 : 1600 x 760 x 880 mm
Weight (en kg):
Parcel Nr.1 : 850 kg
| TECHNICAL DATA | ARGOS30M |
|---|---|
| Lifting capacity | 3,0 t |
| Mid-raise lift | – |
| Double scissor lift | oui |
| Movable (not loaded) | – |
| Lifting/lowering time | 50 / 60 sec. |
| Dimensions (at lowest position) (L x l x h) | 2040 x 1990 x 105 mm |
| Min. height | 105 mm |
| Max. lifting height | 1900 mm |
| Platform length | 1500 – 2080 mm |
| Platform width | 635 mm |
| Free space between the platforms | 720 mm |
| Power supply | 400 V / 3 ph / 50 Hz / 16 A / 2,2 kW |
| Air supply | – |
