Refill station HFO or HFC – top of the range for the modern workshop equipment

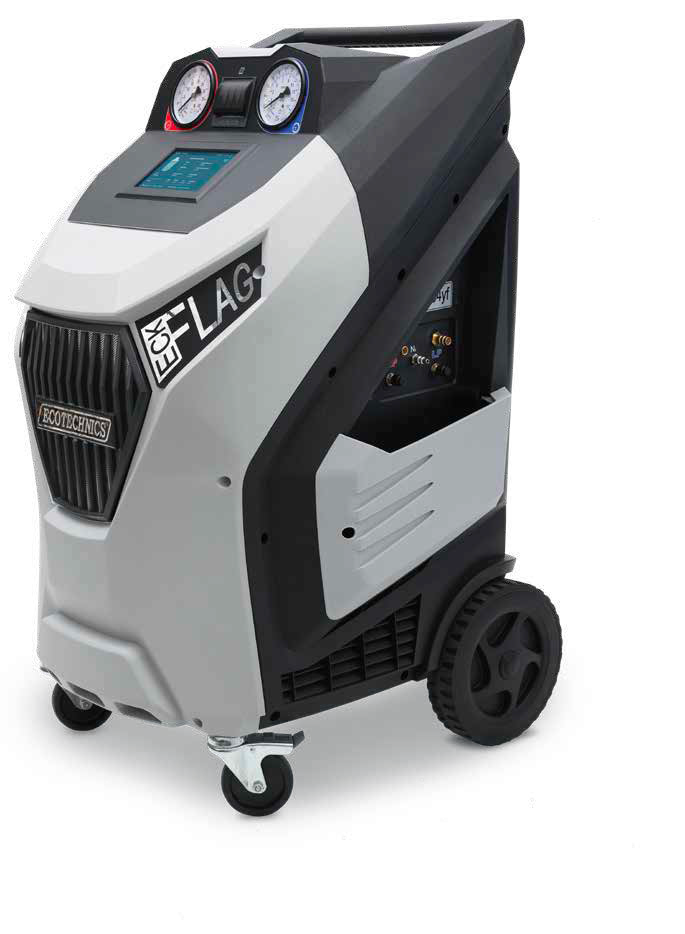

The ECK FLAG station represents the most modern expression of Ecotechnics’ expertise and introduces WIFI to the Ecotechnics product range. The menu navigation is intuitive, professional, simple and designed for quick work with the machine. The 7” colour touch screen offers an exceptional user experience. It is equipped with the hybrid function as standard, and with a leak check of the pressurised A/C system with nitrogen.
Options / Accessories
The ECK FLAG station represents the most modern expression of Ecotechnics’ expertise and introduces WIFI to the Ecotechnics product range. The menu navigation is intuitive, professional, simple and designed for quick work with the machine. The 7” colour touch screen offers an exceptional user experience. It is equipped with the hybrid function as standard, and with a leak check of the pressurised A/C system with nitrogen.
Size (in mm) :
Parcel Nr.1 : 760 x 700 x 1250 mm
Weight (en kg):
Parcel Nr.1 : 95 kg
| TECHNICAL DATA | ECK FLAG |
|---|---|
| Refrigerant management (archiving) | Yes |
| Operator code | Yes |
| Leakage control | Yes |
| Software for automatic washing | Option |
| Visual alarm | Yes |
| Automatic internal bottle refilling | Yes |
| Patented internal distribution unit | Yes |
| Kit Hybride | Yes |
| USB Port | Yes |
| Wi-Fi connectivity | Yes |
| Automatic purge | Yes |
| SAE J2788 and SAE J2843 compliance | Yes |
| Integrated database for cars, vans and trucks | Yes |
| Printer | Yes |
| Balance resolution | 10 g |
| Resolution oil balance | 5 g |
| Operating temperature range | 11/49°C |
| Vacuum pump (0.1 mbar) | 100 L/min |
| Hermetic compressor | 1/3 HP |
| Recovery speed | 300 g/min in liquid phase |
| Internal coolant bottle | 12 liters refillable |
| BP/HP hoses | 3 meters |
| Pressure gauges | Classe 1 |
| Cylinder pressure gauge | Digital |
| Display | Tactile color 7″ |
