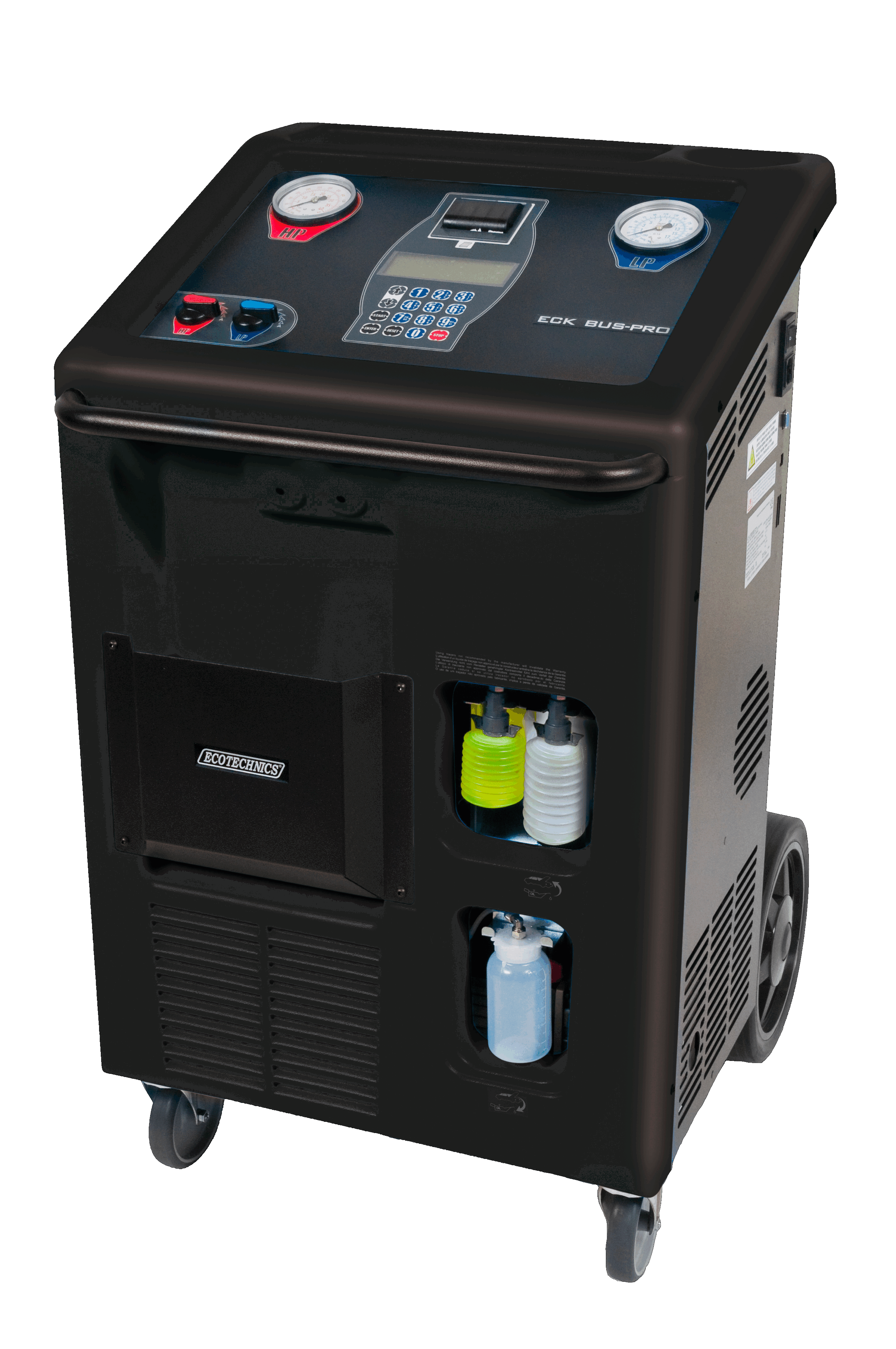

Refill station HFC – Power for the large systems
Super automatic station for the recovery, recycling and recharging of R134a, refrigerant in bus / car and industrial vehicles.
Automatic leak detection The station checks the pressures during the vacuum phase. If a leak is detected, the cycle is interrupted and an alarm is triggered.
Automatic discharge of non-condensable gases based on temperature and pressure sensors
Options / Accessories
Super automatic station for the recovery, recycling and recharging of R134a, refrigerant in bus / car and industrial vehicles.
Automatic leak detection The station checks the pressures during the vacuum phase. If a leak is detected, the cycle is interrupted and an alarm is triggered.
Automatic discharge of non-condensable gases based on temperature and pressure sensors
Size (in mm) :
Parcel Nr.1 : 760 x 700 x 1260 mm
Weight (en kg):
Parcel Nr.1 : 137 kg
| TECHNICAL DATA | ECKBUSPRO |
|---|---|
| Refrigerant management (archiving) | Yes |
| Operator code | – |
| Leakage control | Yes |
| Software for automatic washing | Yes |
| Visual alarm | No |
| Automatic internal bottle refilling | Yes |
| Patented internal distribution unit | Yes |
| Kit Hybride | No |
| USB Port | Yes |
| Wi-Fi connectivity | No |
| Automatic purge | Yes |
| SAE J2788 and SAE J2843 compliance | Yes |
| Integrated database for cars, vans and trucks | Yes |
| Printer | Yes |
| Balance resolution | 10 g |
| Resolution oil balance | 5 g |
| Operating temperature range | 11/49°C |
| Vacuum pump (0.1 mbar) | 170L/min |
| Hermetic compressor | 21 cc high pressure |
| Recovery speed | 1000 g / min in liquid phase |
| Internal coolant bottle | 40 liters |
| BP/HP hoses | 6 meters |
| Pressure gauges | Classe 1 |
| Cylinder pressure gauge | Digital |
| Display | LCD |
