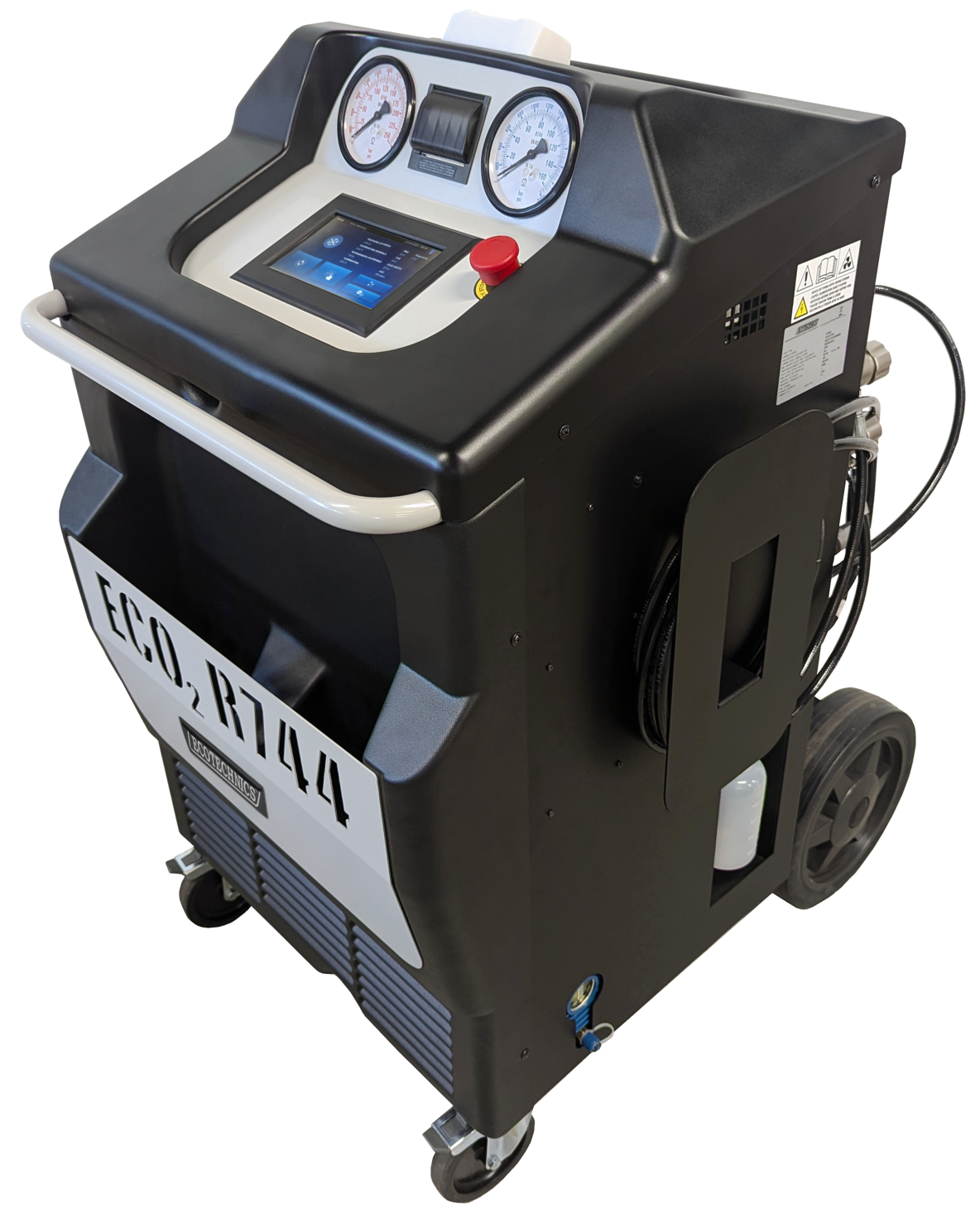

Refill station CO2
Size (in mm) :
Weight (en kg):
| TECHNICAL DATA | ECO2R744 |
|---|---|
| Refrigerant management (archiving) | Yes |
| Operator code | – |
| Leakage control | Yes |
| Software for automatic washing | Yes |
| Visual alarm | Yes |
| Automatic internal bottle refilling | – |
| Patented internal distribution unit | Yes |
| Kit Hybride | Yes |
| USB Port | Yes |
| Wi-Fi connectivity | Yes |
| Automatic purge | No |
| SAE J2788 and SAE J2843 compliance | SAEJ639 |
| Integrated database for cars, vans and trucks | Yes |
| Printer | Yes |
| Balance resolution | 10 g |
| Resolution oil balance | 5 g |
| Operating temperature range | 10/48°C |
| Vacuum pump (0.1 mbar) | 142L/min |
| Hermetic compressor | – |
| Recovery speed | 1000 g / min in liquid phase |
| Internal coolant bottle | No internal bottle |
| BP/HP hoses | 3 meters |
| Pressure gauges | Classe 1 |
| Cylinder pressure gauge | – |
| Display | tactil and color 7“ |
2,0 T jacking beams without running wheels
Universal and indispensable solution for jacking under axle.
This jacking beams 2,0 T is designated to run between the two platforms of the lift, or in a pit, to be positioned exactly under the vehicle’s axle to be raised.
The lifting movement is done by an hydraulic lifting cylinder, with oil pressure created by an air-hydraulic motor integrated in the jacking beam. The jacking beam is only air supplied (no power), and features safety latching and savety overloading devices. The lowering movement requires two hands for safety reason, with a “hold to run” command.
2,6 T jacking beam without running wheels
Universal and indispensable solution for jacking under axle.
This jacking beams 2,6 T is designated to run between the two platforms of the lift, or in a pit, to be positioned exactly under the vehicle’s axle to be raised.
The lifting movement is done by an hydraulic lifting cylinder, with oil pressure created by an air-hydraulic motor integrated in the jacking beam. The jacking beam is only air supplied (no power), and features safety latching and savety overloading devices. The lowering movement requires two hands for safety reason, with a “hold to run” command.
Double scissor low profile lift 3,0 T
This electro-hydraulic wheel free lift, features a lifting height of 1900 mm, providing optimal access to the vehicle underbody for repair or service works.
Set 8 universal adaptators
Compatible with vehicle lifting 4619316
Set, 8 universal adaptors, with oblong fixing hole for continuous and accurate position adjustment. The adaptor gets quickly and safely clamped onto the lifting platform, thanks to its thumb screw, to be hand tightened thumb screw.
Lifting table – 1200 kg
This lifting table has been especially designed to easily and safely remove and install heavy batteries from electric vehicles, in conjunction with the use of a 2-post lift such as the Azur42AH.
Photocell for installation under low ceiling
Compatible with 2-post lifts AZUR35CH, AZUR42CH, AZUR50CH and AZUR50WH
