Mobile station 3,5 T
With a total weight of 3.5T makes it a towable station for pickup and light commercial vehicles. This mobile station, in its standard configuration permits the technical inspection of light vehicles.
An office room allows the administrative tasks required for technical vehicle inspection to be carried out.
Like all mobile stations in the range, many configurations are possible (motorcycle, mixed, lifting, etc.)
Options / Accessories
Main power supply, generator : 20 KVA
Side slip tester
Roller brake tester
Suspension tester
Repeater screen
PC tablet repeater
With a total weight of 3.5T makes it a towable station for pickup and light commercial vehicles. This mobile station, in its standard configuration permits the technical inspection of light vehicles.
An office room allows the administrative tasks required for technical vehicle inspection to be carried out.
Like all mobile stations in the range, many configurations are possible (motorcycle, mixed, lifting, etc.)
Size (in mm) :
Parcel Nr.1 (on road) : 4820 x 2538 x 3404 mm
Parcel Nr.2 (at work) : 7332 x 6522 x 4022 mm
Weight (en kg):
Parcel Nr.1 : 3450 kg
| BASIC EQUIPMENT | 3W | LV | HV |
|---|---|---|---|
| Main power supply / Generator 20 KVA | ✓ | ||
| Roller brake tester | ✓ | ||
| Suspension tester | ✓ | ||
| Side slip tester | ✓ | ||
| Axle play detectors | ✓ | ||
| PC tablet repeater | ✓ | ||
| OPTIONAL EQUIPMENT | 3W | LV | HV |

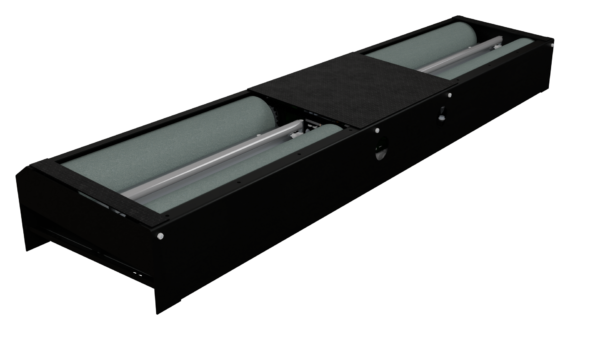

| Roller brake tester (Ref. 43300) | ✓ | ||
| Headlight tester | ✓ | ✓ | |
| Repeater screen | ✓ | ✓ | |
| Camera assembly for visual inspection | ✓ | ✓ | |
| Exhaust emission tester | ✓ | ✓ |
