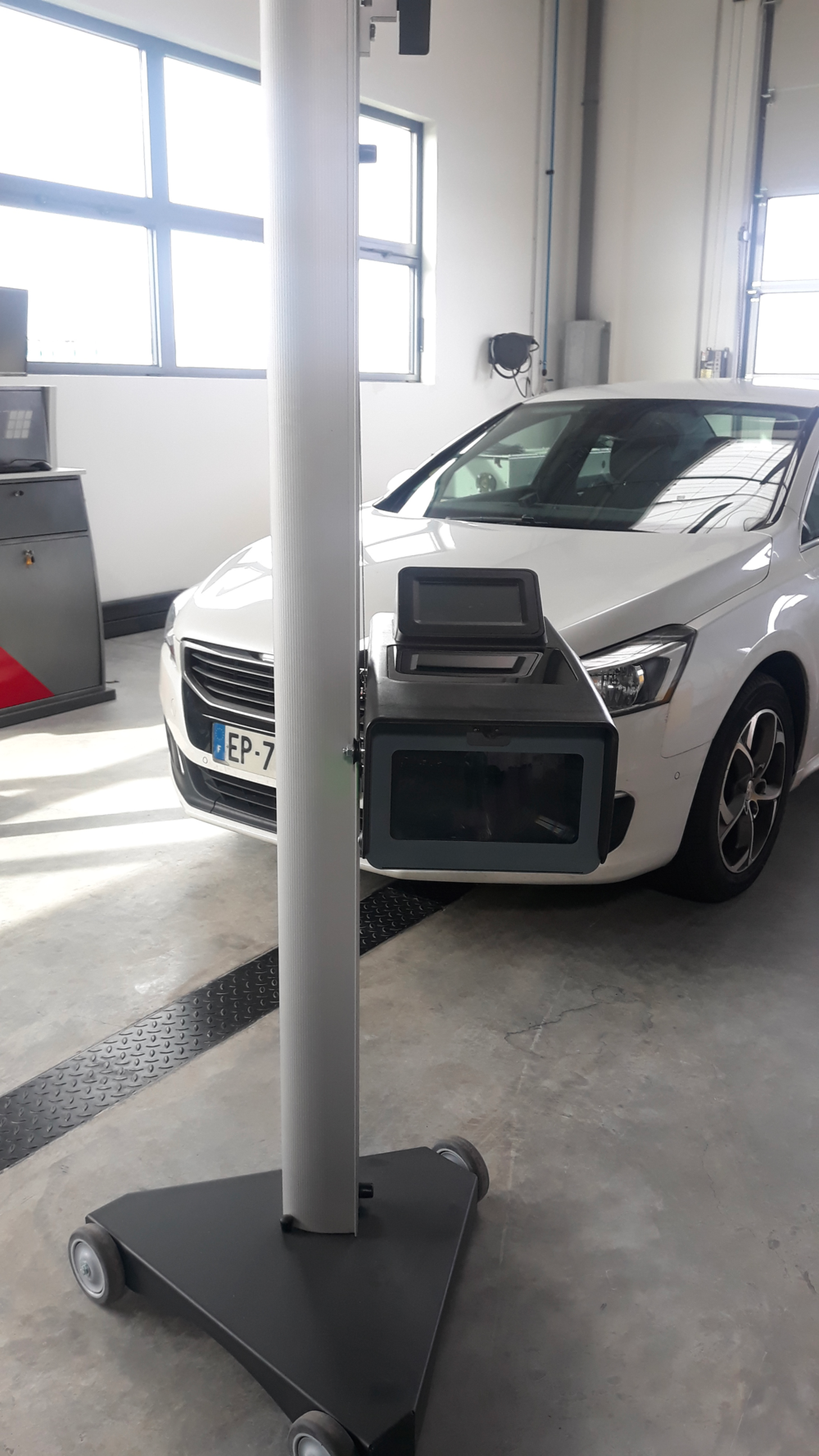

Headlight tester
Device dedicated to measure high / low beams and fog lights :
• Analysis by CMOS camera ton control the latest generation of lights : Xenon, Halogen, LED
• Wide 7“ colour touch screen
Options / Accessories
Device dedicated to measure high / low beams and fog lights :
• Analysis by CMOS camera ton control the latest generation of lights : Xenon, Halogen, LED
• Wide 7“ colour touch screen
Size (in mm) :
Parcel Nr.1 : 665 x 624 x 2037 mm
Weight (en kg):
Parcel Nr.1 : 45 kg
| TECHNICAL DATA | SMARTLYNX |
|---|---|
| Battery | 7,4 V / 13 A/h |
| Power supply | 100 / 240 Vac – 1,2 A – 50 / 60 Hz |
| Power supply output voltage | 12 V – 3 A |
| Operating temperature | from -5°C to 45°C |
| Storage temperature | from -15°C to 55°C |
| Relative humidity | < 98% non condensed |
| Range of vertical deviation | +3% to -6% |
| Range of vertical deviation (french procedure) | +2% to -4% |
| Light intensity | Lux / Kcd / 0,1 Kcd |
| Range of intensity measurement | 0 to 200 lux / 0 to 125 000 cd |
| Accuracy | +/- 10% |
| Correction of the tilt (range) | from +1% to -1% (+1,75% to -1,75%) |
| Correction of the tilt (accuracy) | +/- 0,1% |
| Pitch correction range | from 2% to -2% (+3,5% to -3,5%) |
| Pitch correction range (accuracy) | +/- 0,1% |
