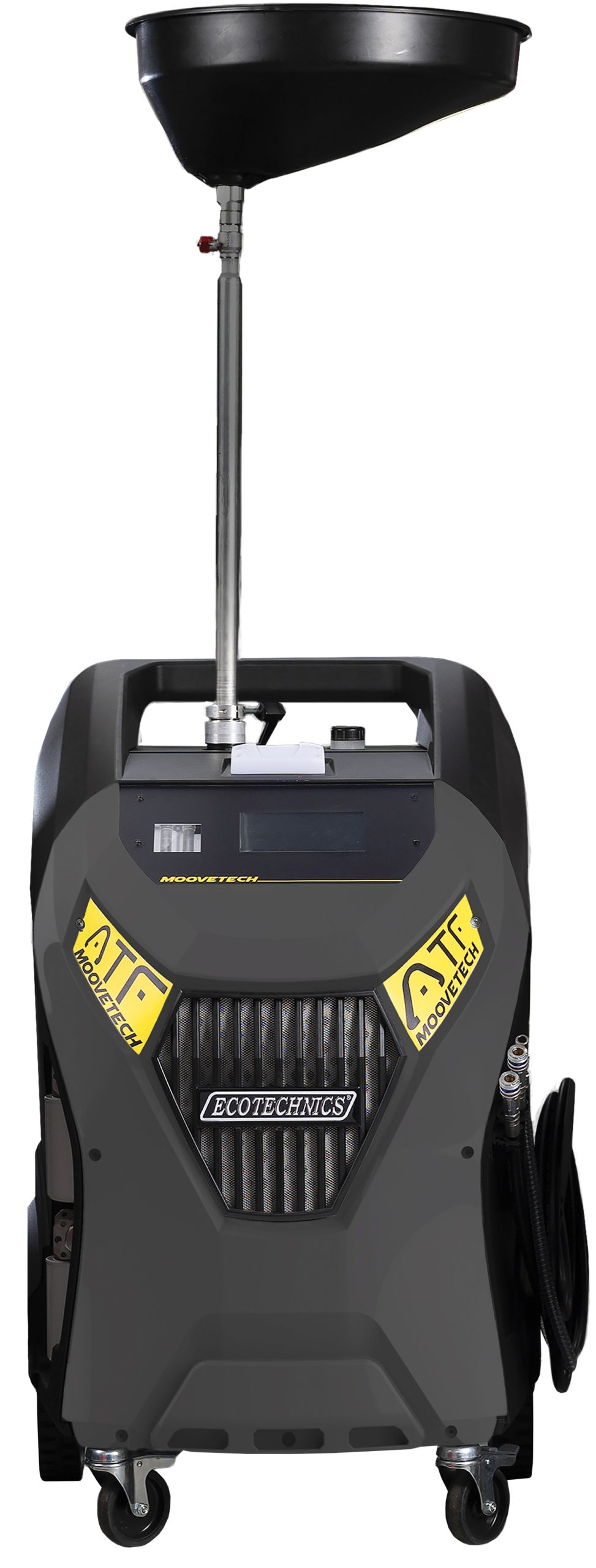

Draining unit – Automatic gearbox
Size (in mm) :
Parcel Nr.1 : 760 x 700 x 1370 mm
Weight (en kg):
Parcel Nr.1 : 95 kg
| TECHNICAL DATA | ATF MOOVETECH |
|---|---|
| Type of service | Automatic and intuitive (7″ touchscreen) |
| Database | Included, photos and diagrams of connection positions |
| Flow direction detection | Automatic, High-flow pump (up to 9l / min) |
| Oil quality indicator | By illuminated transparent tubes |
| Cleaning additive injection cleaning | Automatic |
| Crankcase oil recovery bowl | With SMART DRIP system |
| Waste oil tank | With compressed air, easy drain |
| New oil tank | Removable plastic drum, 20 litres |
| Oil filtration | 2 filters 10 μ |
2,0 T jacking beams without running wheels
Universal and indispensable solution for jacking under axle.
This jacking beams 2,0 T is designated to run between the two platforms of the lift, or in a pit, to be positioned exactly under the vehicle’s axle to be raised.
The lifting movement is done by an hydraulic lifting cylinder, with oil pressure created by an air-hydraulic motor integrated in the jacking beam. The jacking beam is only air supplied (no power), and features safety latching and savety overloading devices. The lowering movement requires two hands for safety reason, with a “hold to run” command.
2,6 T jacking beam without running wheels
Universal and indispensable solution for jacking under axle.
This jacking beams 2,6 T is designated to run between the two platforms of the lift, or in a pit, to be positioned exactly under the vehicle’s axle to be raised.
The lifting movement is done by an hydraulic lifting cylinder, with oil pressure created by an air-hydraulic motor integrated in the jacking beam. The jacking beam is only air supplied (no power), and features safety latching and savety overloading devices. The lowering movement requires two hands for safety reason, with a “hold to run” command.
Double scissor low profile lift 3,0 T
This electro-hydraulic wheel free lift, features a lifting height of 1900 mm, providing optimal access to the vehicle underbody for repair or service works.
Set 8 universal adaptators
Compatible with vehicle lifting 4619316
Set, 8 universal adaptors, with oblong fixing hole for continuous and accurate position adjustment. The adaptor gets quickly and safely clamped onto the lifting platform, thanks to its thumb screw, to be hand tightened thumb screw.
Lifting table – 1200 kg
This lifting table has been especially designed to easily and safely remove and install heavy batteries from electric vehicles, in conjunction with the use of a 2-post lift such as the Azur42AH.
Photocell for installation under low ceiling
Compatible with 2-post lifts AZUR35CH, AZUR42CH, AZUR50CH and AZUR50WH
