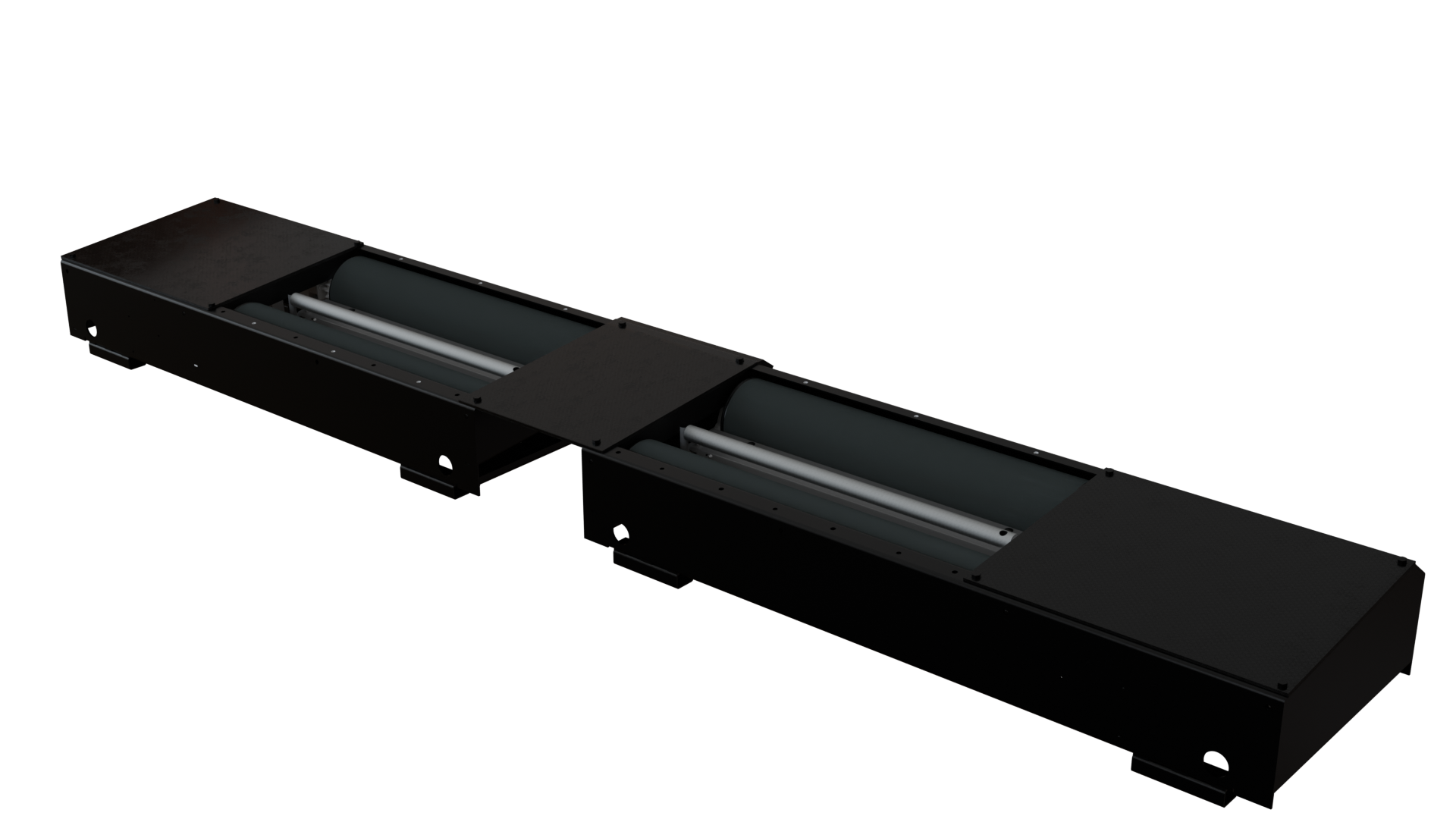

Brake tester – wide biblocpainted chassis
The 43350 bibloc brake bench is derived from the 43350 monobloc bench. Its main advantage is that it adapts to all clear-space configurations.
Depending on the track configuration chosen, the bibloc bench can accommodate vehicles with a minimum width of up to 130 mm and a maximum width of up to 2,800 mm.
Options / Accessories
The 43350 bibloc brake bench is derived from the 43350 monobloc bench. Its main advantage is that it adapts to all clear-space configurations.
Depending on the track configuration chosen, the bibloc bench can accommodate vehicles with a minimum width of up to 130 mm and a maximum width of up to 2,800 mm.
Size (in mm) :
Parcel Nr.1 : 740 x 1500 x 500 mm
Parcel Nr.2 : 740 x 1500 x 500 mm
Weight (en kg):
Parcel Nr.1 : 250 kg
Parcel Nr.2 : 250 kg
| TECHNICAL DATA | 43350BB |
|---|---|
| Finishing | painted chassis |
| Dimension | 1 785 x 650 x 285/335 mm |
| Weight | 530 kg |
| Minimum / Maximum clearance | 130 mm / 2 800 mm |
| Axle load | 4 000 kg |
| Roller diameter | > 200 mm |
| Roller length | 983 mm |
| Maximum braking force | 2 x 900 daN at speed 4,3 km/h |
| Motor power | 2 x 4,7 kW |
| Roller coating | Epoxy / Silica |
| Adhesion coefficient | dry > 0,8 / wet > 0,6 |
| Raised rear rollers | + 35 mm |
