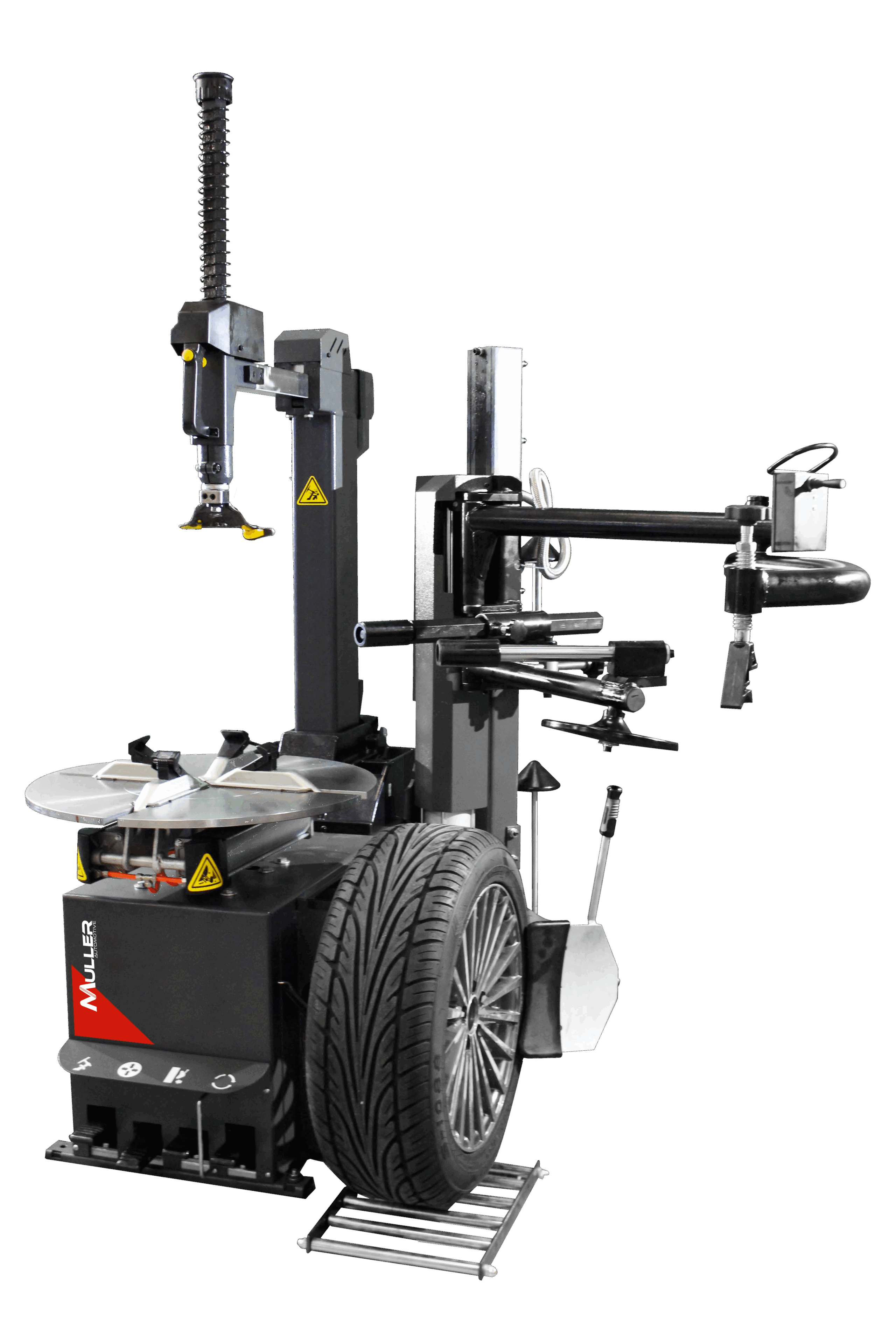

Automatic tyre changer
Automatic tyre changer with locking capability up to 26’. This MDP126AV1 tyre changer, with third arm assistant, can be used to change wheels up to 26’.
Options / Accessories
Third arm
1 set of slide guard

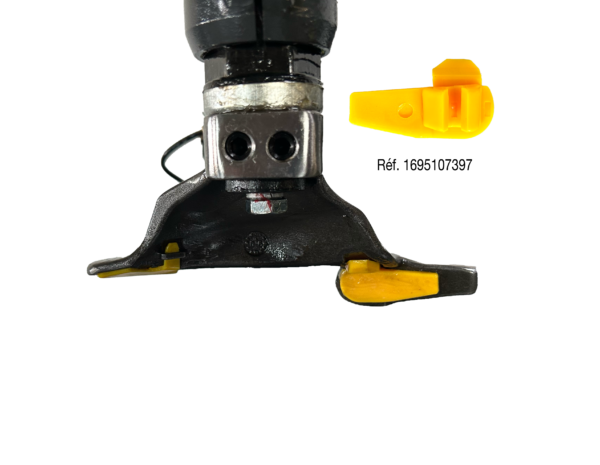

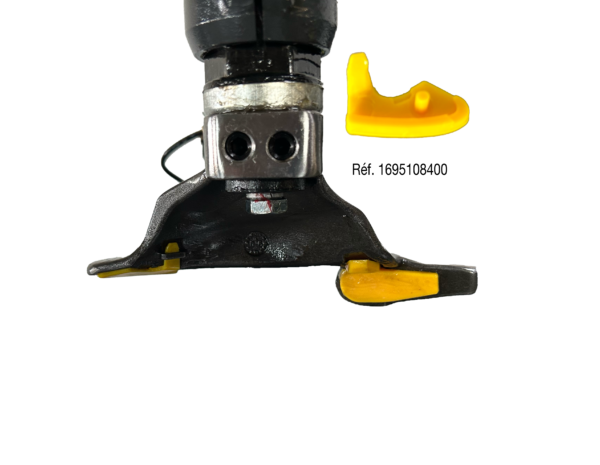

1 set of rear and front head protection

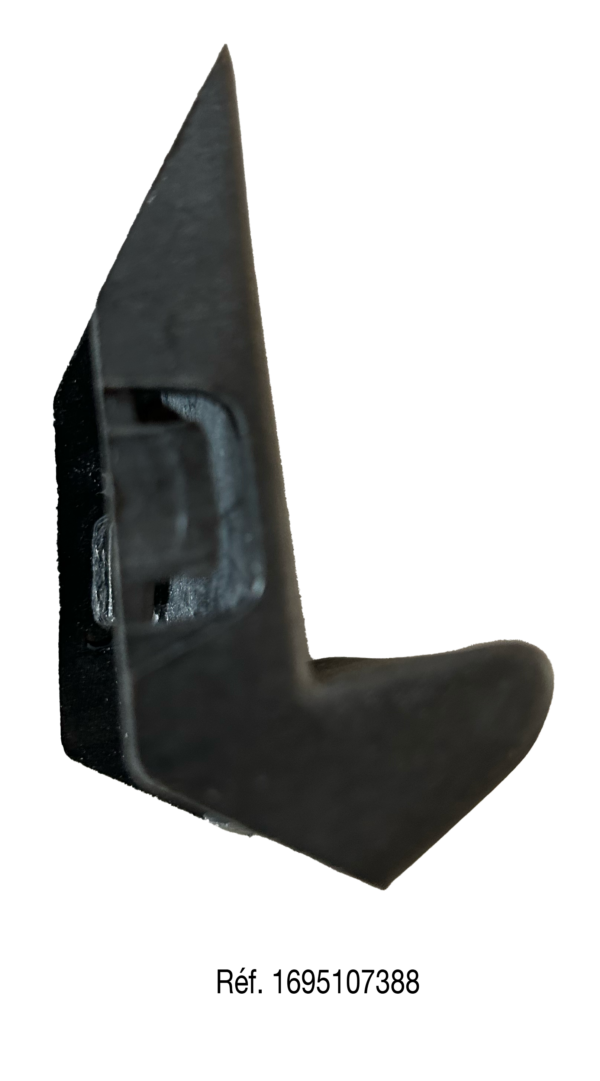

1 rim breaker blade protection
Automatic tyre changer with locking capability up to 26’. This MDP126AV1 tyre changer, with third arm assistant, can be used to change wheels up to 26’.
Size (in mm) :
Weight (en kg):
| TECHNICAL DATA | MDP126AV1 |
|---|---|
| Inside clamping capacity | 12″ – 26″ |
| Outside clamping capacity | 10″ – 22″ |
| Maximum tyre width | 320 mm (12″) |
| Maximum tyre diameter | 1050 mm (41″) |
| Bead Breaker force | 2,5T |
| Operating pressure | 8 – 10 bars |
| Power supply | 380V/50Hz/3ph |
| Motor power | 0,75kW |
| Rotation speed | 0 à 16 tours/min |
| Noise level | <70 +/- 3dB (A) |
| Net weight | 390 kg |
