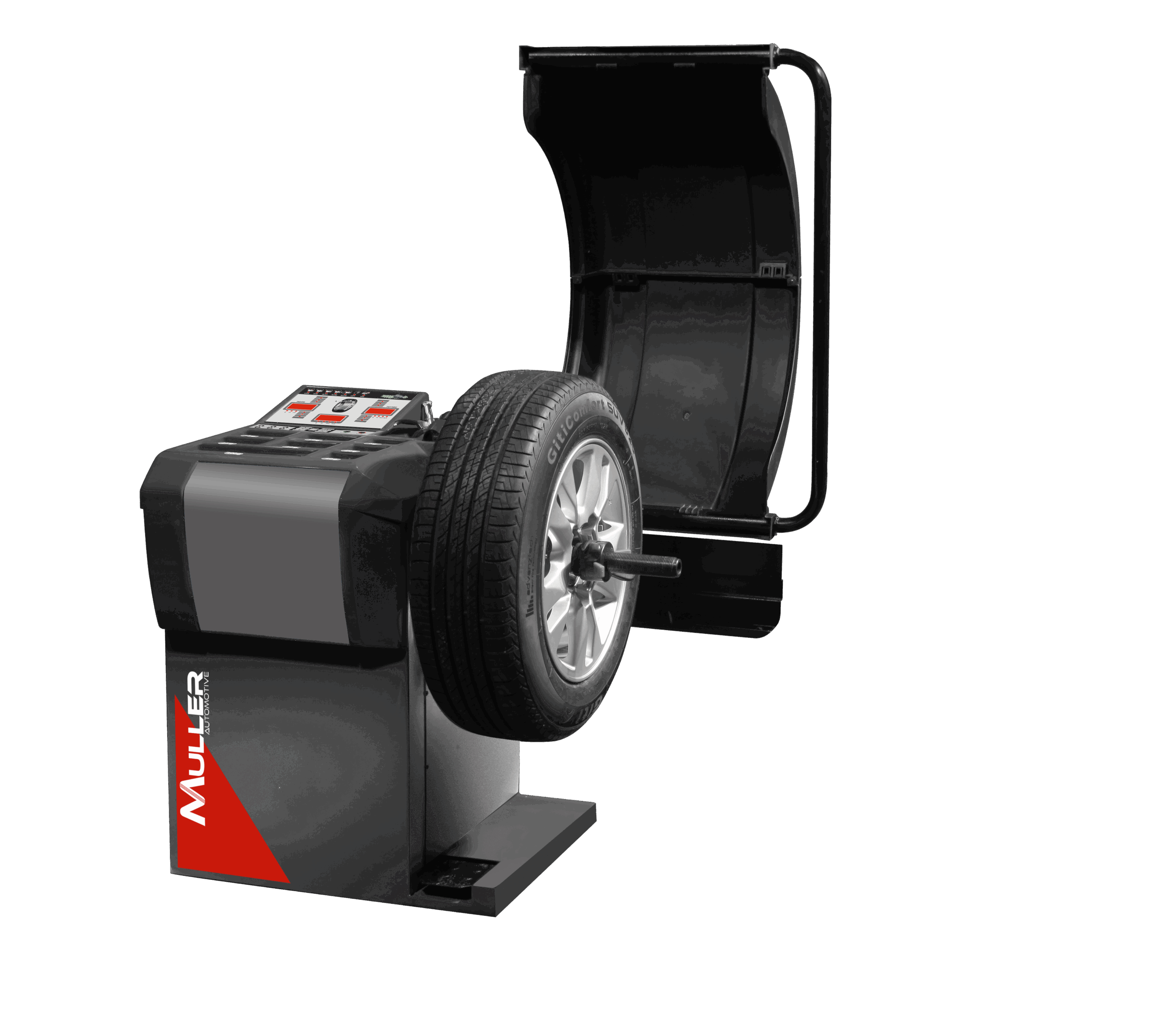

1 automatic gauge wheel balancer
– LED display
– Protective cover
– Brake pedal for wheel lock
– Automatic distance & diameter measurement
Options / Accessories
Quick release kit
3 cones kit
Ground clamp
Measuring caliper
– LED display
– Protective cover
– Brake pedal for wheel lock
– Automatic distance & diameter measurement
Size (in mm) :
Weight (en kg):
| TECHNICAL DATA | MEQ126L |
|---|---|
| Balancing speed | 180 tr/min |
| Measuring cycle | 8 s |
| Measurement uncertainty | 1 g |
| Resolution | 1 g |
| Noise level | <70 +/- 3dB (A) |
| Rim width setting range | 40 – 510 mm |
| Rim diameter setting range | 305 – 660 mm |
| Maximum width of the wheel | 508 mm |
| Maximum diameter of the wheel | 1050 mm |
| Max wheel weight | <65 kg |
| Net weight | 145 kg |
| Power supply | 230V / 50-60Hz |
