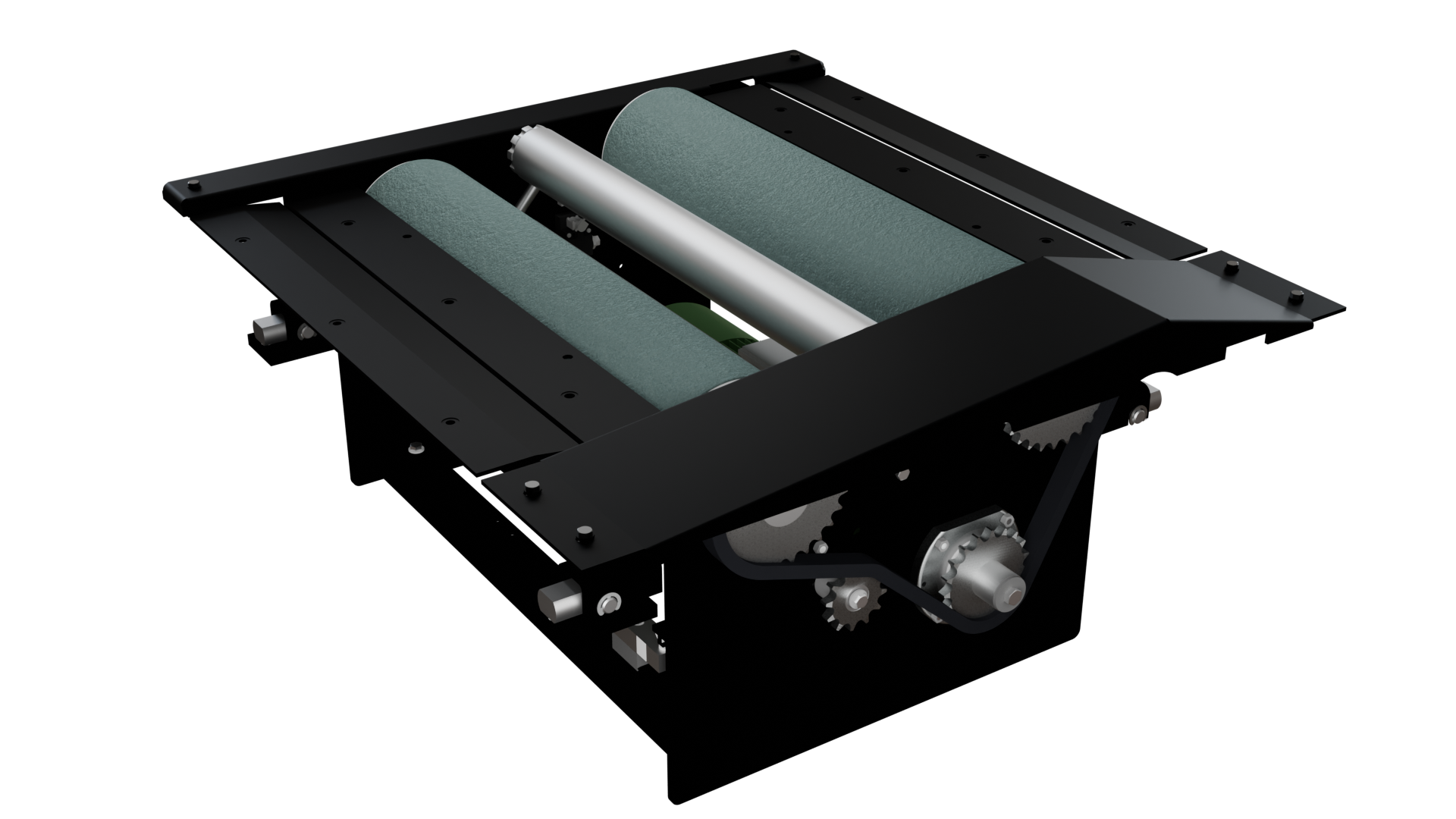

Brake tester – 20T wide bibloc
The 47500 brake tester is the wider version of our best- seller 44700 brake tester, with the same features and options.
What differentiates this version of the brake tester is the length of the rollers, which allows wide-track vehicles to be tested (maximum track width 3 100mm).
Options / Accessories
Single chain kit
Single layer
The 47500 brake tester is the wider version of our best- seller 44700 brake tester, with the same features and options.
What differentiates this version of the brake tester is the length of the rollers, which allows wide-track vehicles to be tested (maximum track width 3 100mm).
Size (in mm) :
Parcel Nr.1 : 1200 x 1990 x 1350 mm
Parcel Nr.2 : 1200 x 1660 x 1010 mm
Weight (en kg):
Parcel Nr.1 : 850 kg
Parcel nr.2 : 780 kg
| TECHNICAL DATA | 44750 |
|---|---|
| Axle load | 20 000 kg |
| Roller diameter | 250 mm |
| Minimum / Maximum clearance | 600 / 3 100 mm |
| Test speed | 2,2 km/h |
| Brake motors (exit help) | 2 x 11 kW |
| Maximum braking forces | 2 x 4 000 daN |
| Adhesion coefficient | dry > 0,8 / wet > 0,6 |
| Raised rear rollers | 35 mm |
| Clearance between frames | 380 mm |
| Two-speed management | optional |
